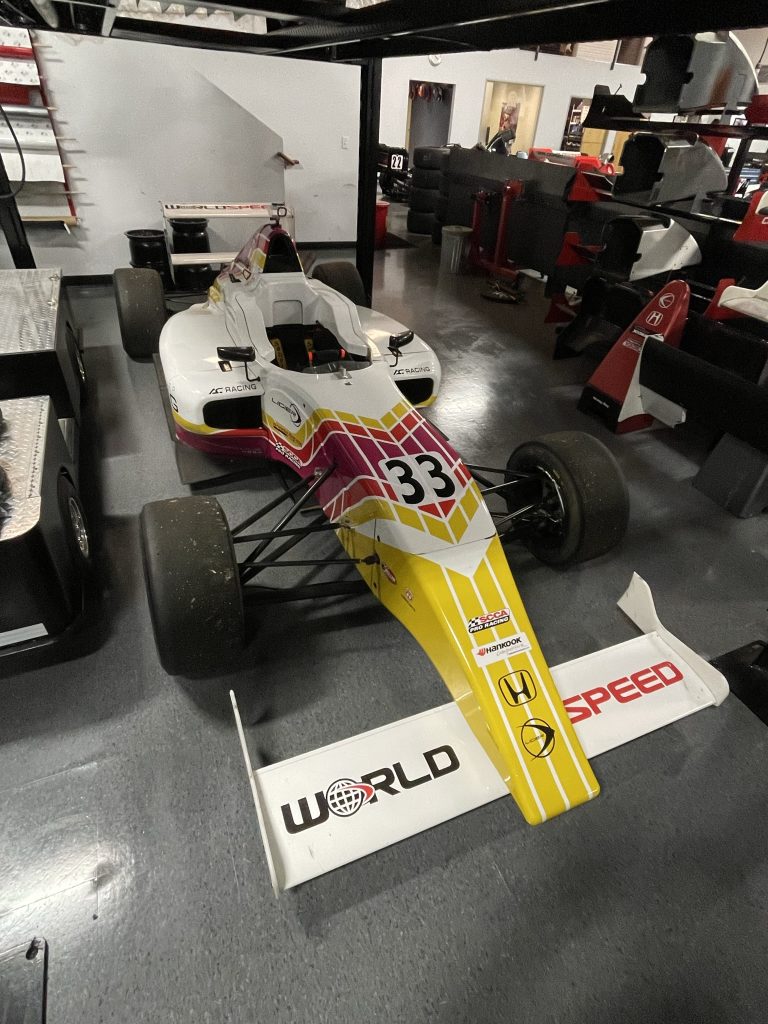

Chassis and Bodywork

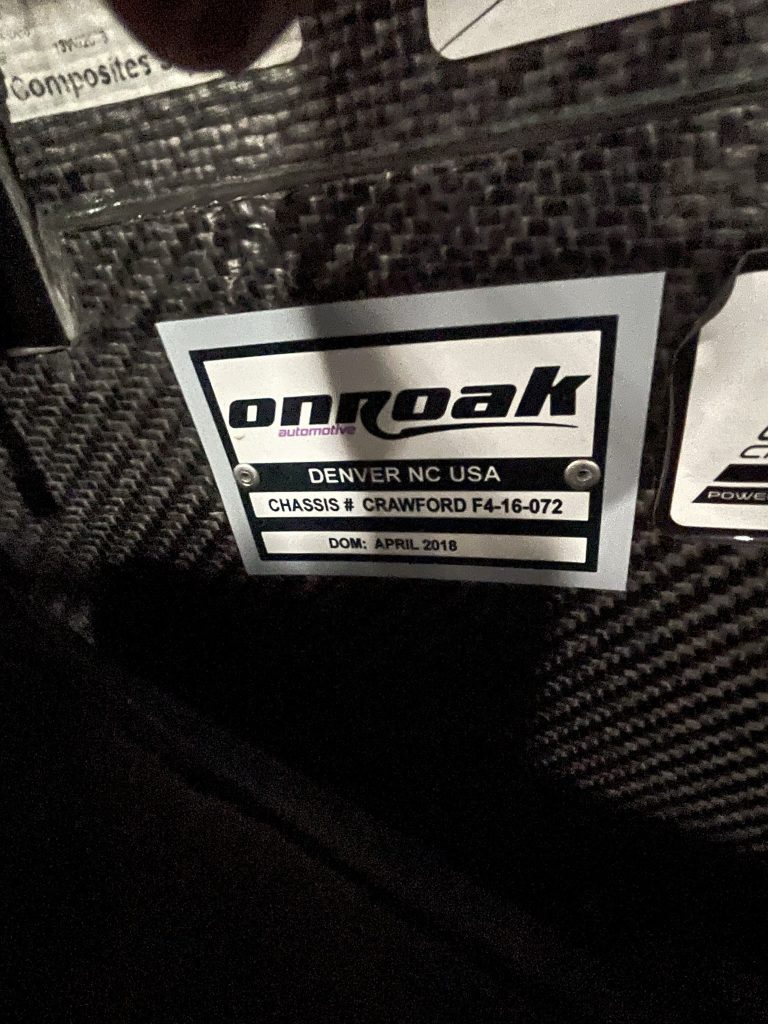

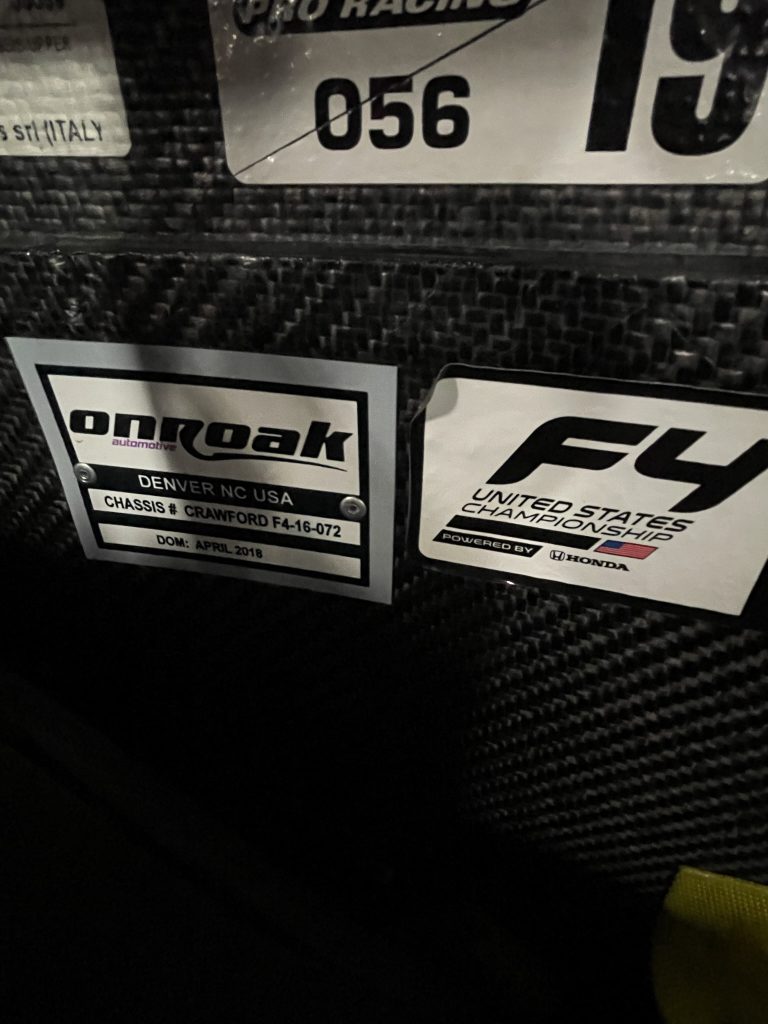

• 2016 F4 Spec. Carbon Composite Monocoque
• Front and Rear Roll-Over Structure
• Anti-Intrusion Side Panels
• Lightweight Composite Bodywork
• Adjustable Wings Front and Rear

Dimensions and Weight

• Width: 1750 mm / 69″
• Wheelbase: 2745 mm / 108″
• Weight: 570 kg / 1254 lbs

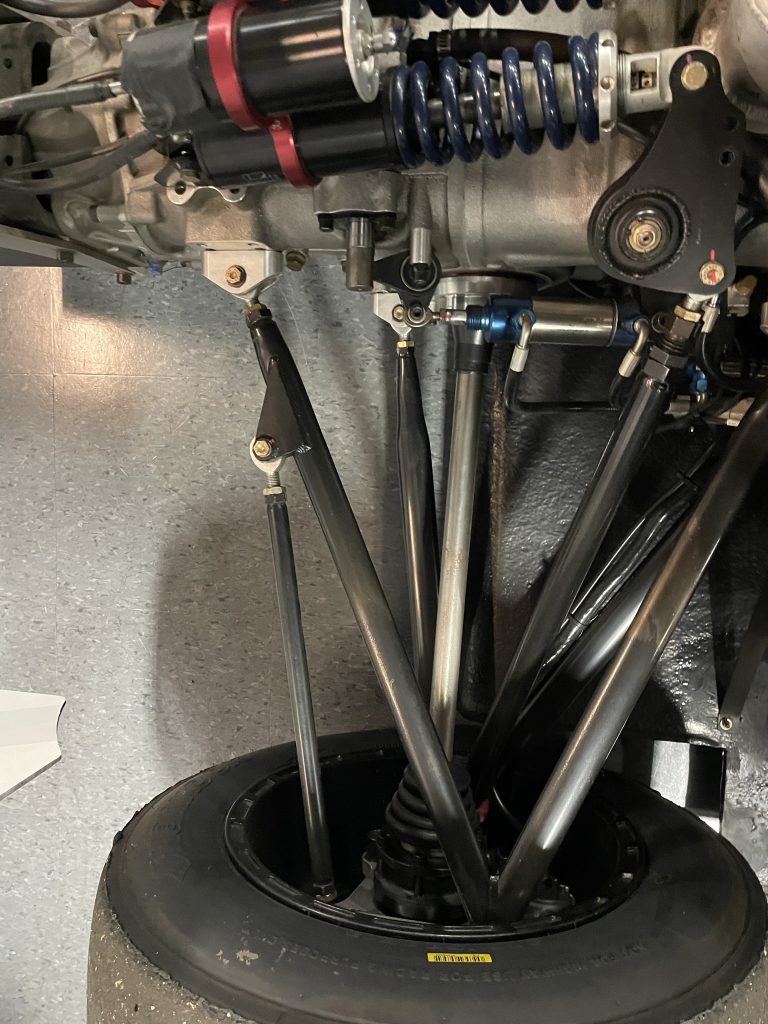

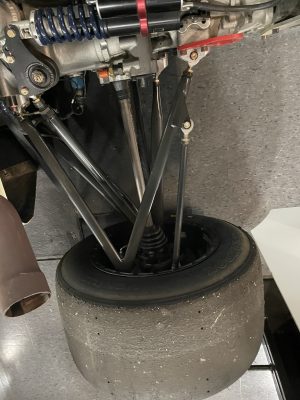

Suspension

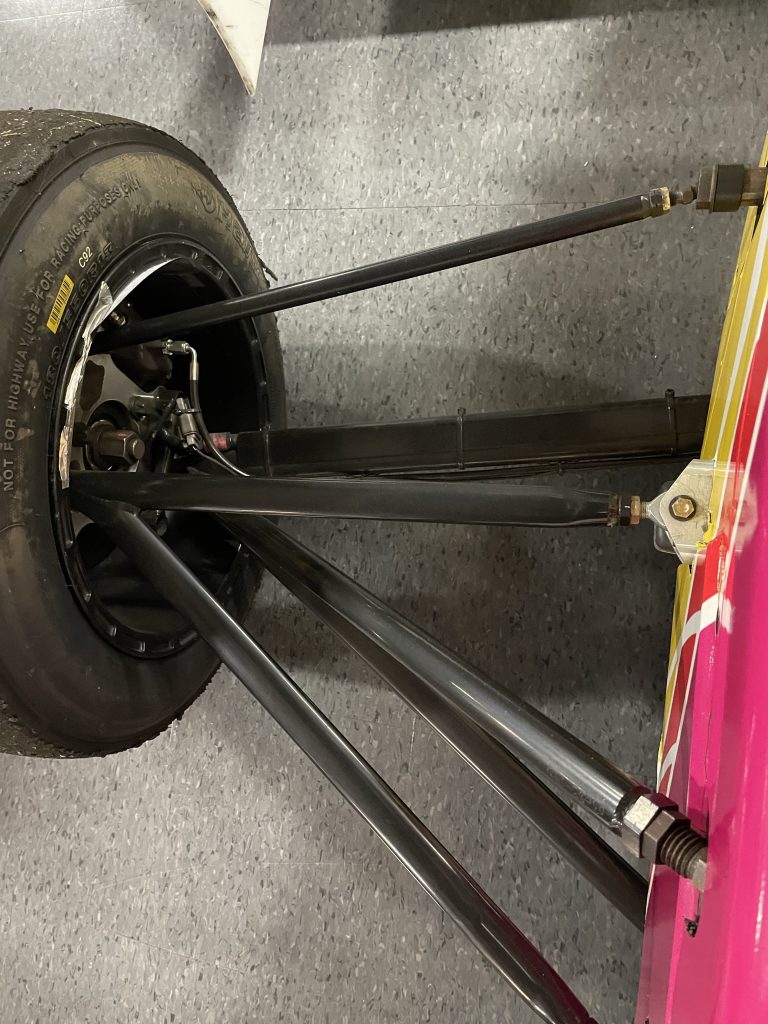

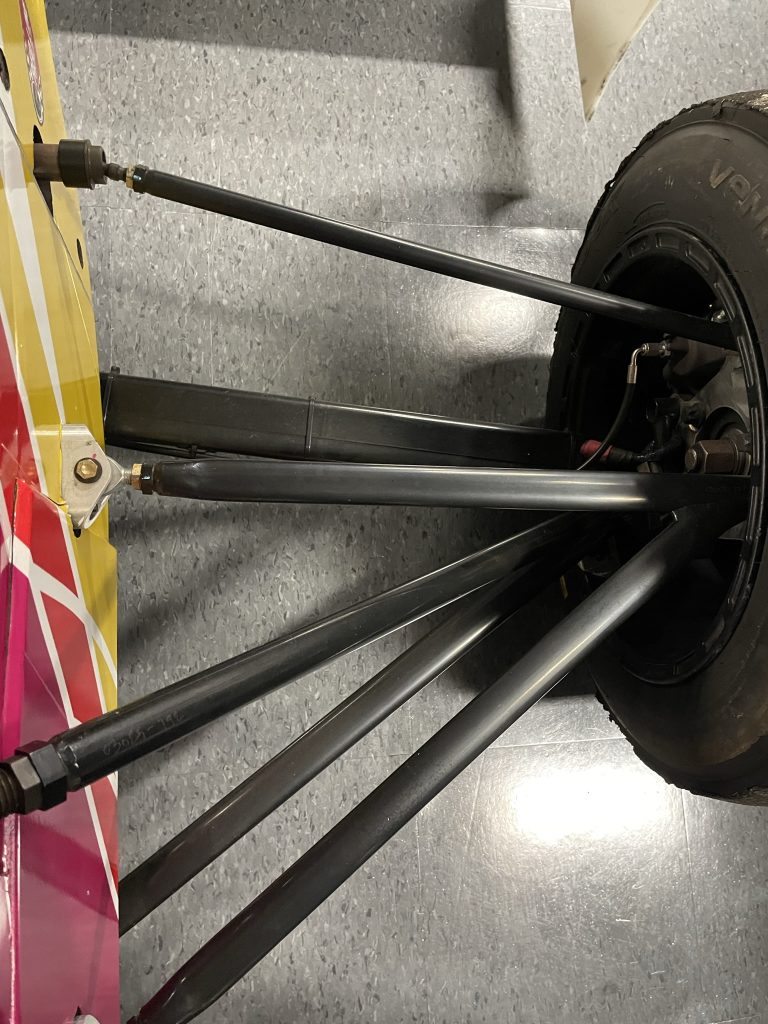

• Double Wishbone Front and Rear
• Pushrod Adjustable Ride
• Adjustable Anti-Roll Bars

Engine (for the F4 US Championship)

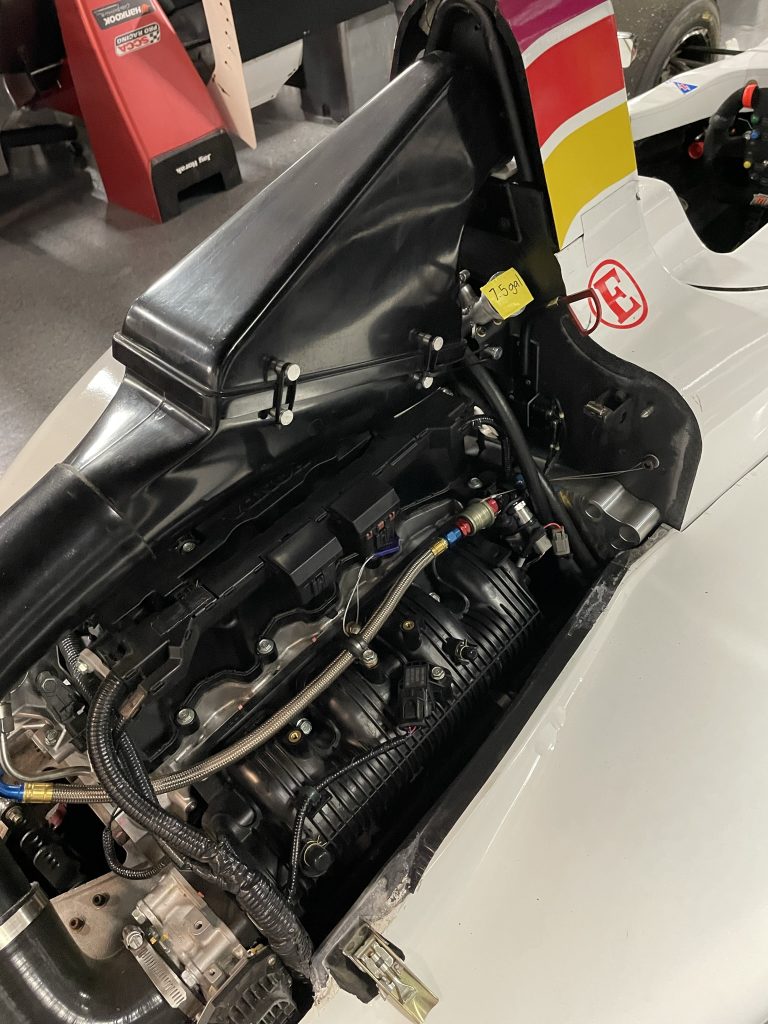

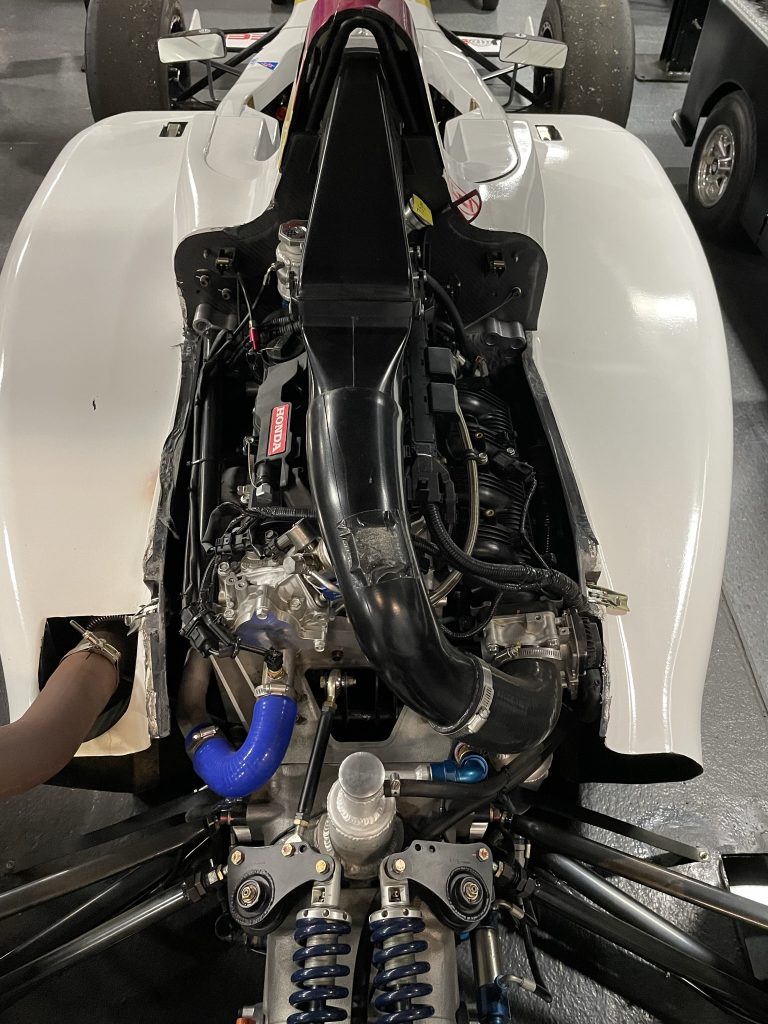

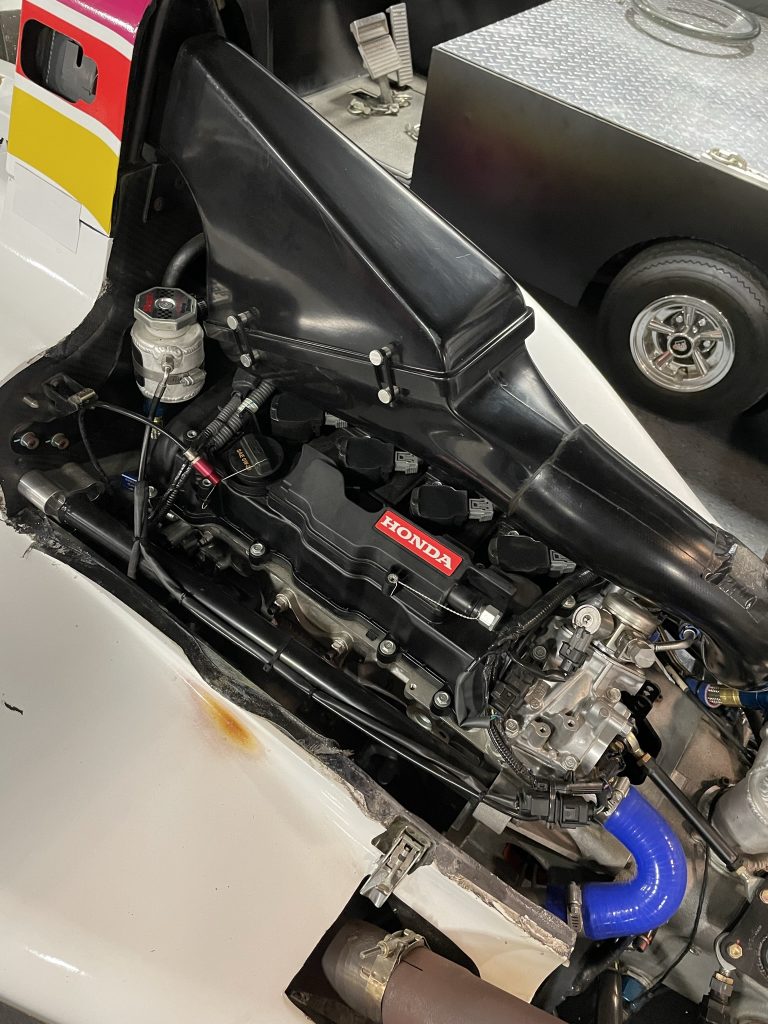

• Honda 2.0 Liter 160 bhp

Gearbox

• Sadev 6-Speed Sequential
• Tripod CV Joints
• Pneumatic Paddle Shift

Fuel System

• ATL Single 13 US Gallon Fuel Tank
• Electrical Pick Up Pump in Tank

Steering

• Rack and Pinion Steering

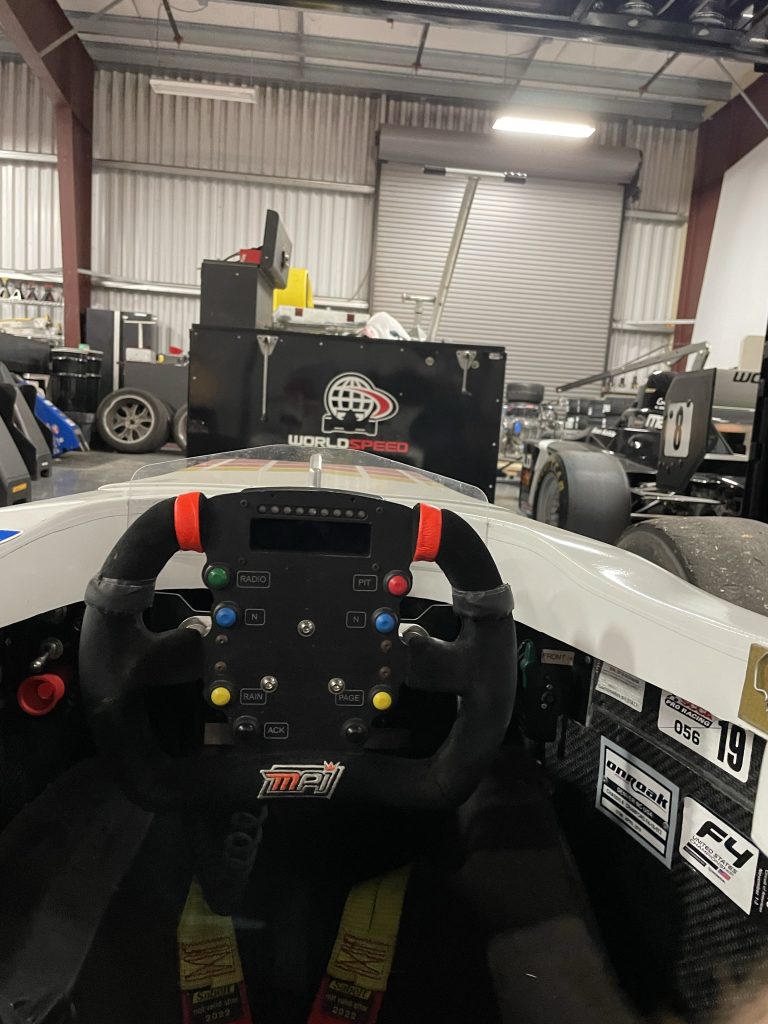

• Quick Release Steering Wheel
• Height Adjustable Column
• Safety Collapsible Steering Column

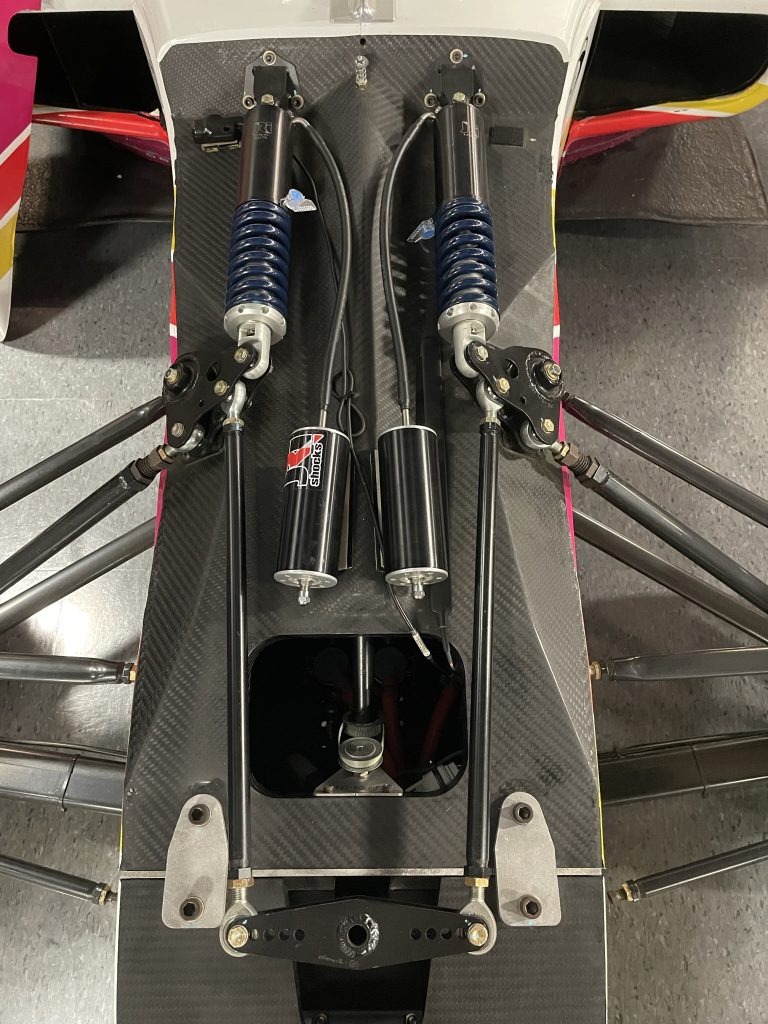

Shocks

• JRI 2-Way Adjustable Dampers
• Coil Over Dampers

Brakes

• 2 Pot Calipers
• Tilton Adjustable Pedal Box for Position
• Cockpit Adjustable Brake Bias
• Accessible Fluid Reservoirs

Electronics

• GEMS Performance Electronics
• LDS3R Display

Safety

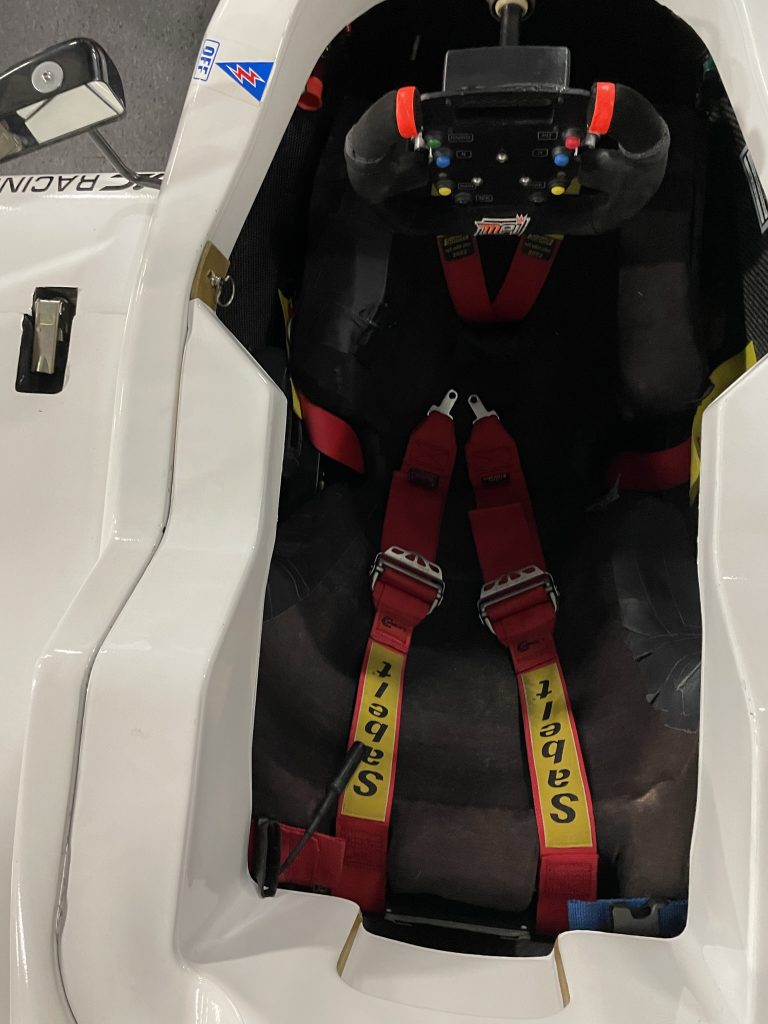

• FIA Spec. 6-Point Harness
• Front Anti-Intrusion Panels
• On-Board Fire Suppression System
• HANS Compatible Headrest
• Nosebox Crash Structure
• Rear Attenuator
• 6KJ Wheel Tethers

• None

• One owner car purchased brand new in 2018
• Ran FPUSA F4 West Coast series
• No accidents or shunts
• Original engine
• Original bodywork
• Run and maintained by premier west coast race team
• Well cared for and ready to race

• No known current issues

• Car comes with an extra set of wheels and some other miscellaneous parts

Eligible Race Classes:

• FPUSA (F4)
• SCCA Pro (F4)
• SCCA (F4, FX)
• NASA Test/Track Days
